Outback Inverter

Deluxe Full Home System
*17,500 Watthours / day  - 122,500 Watthours / week

Deluxe Full Home System (AC)
Solar Electric Home System
4.5 Kilowatts PV / 7,000 WATT SINEWAVE INVERTER STACK
This is the ultimate turn-key stand alone solar power system for all of your home electrical needs,
including 120 or 240VAC well pumps.  The two 3500 watt sine wave inverters are stacked to
provide 7kw of continuos power.  With this system you will never have to rely on an outside source to provide energy for your home.

System Includes:
18 - PV panels  (250 watt, 8.27 amp) 25 year warranty
2 - Combiner boxes & breakers
6 - Solar Array Wire Harnesses & strain reliefs

2 - 9 panel Top Of Pole mounts

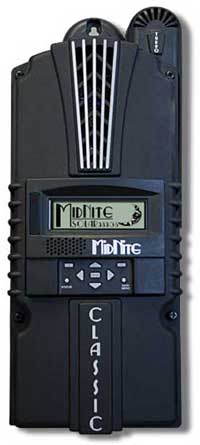

1 - Midnite Solar 150 charge controller

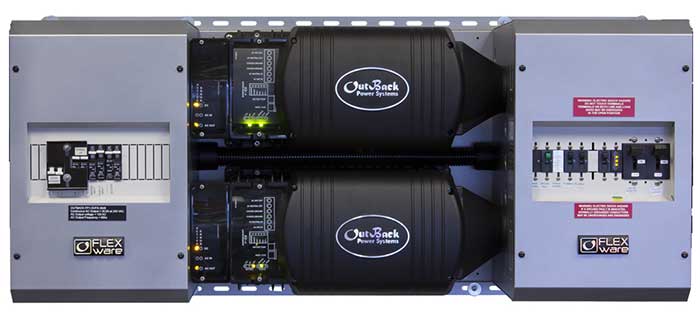

1 - Outback Flexware 500 Power Panel fully assembled INCLUDING:

2 - Outback 3524 inverters (3500 watt inverter with built in 120 amp charger)
1 - Flexware 500 AC enclosure
1 - Flexware 500 DC enclosure
2 - Array Disconnect Breaker input/output
1 - Outback Mate System Monitor
1 - Outback Battery Temperature Sensor
2 - Array Input and Output Breakers
2 - Inverter bypass switches and all cable, connectors and conduit w. pre-wired panel
2 - 250a Battery Disconnect Breakers

1 - 6' Battery to Inverter 4/0 cable set

Also needed but NOT included:
Deep Cycle, Lead Acid batteries.
(We recommend a set of 6 - 1900 amp hour 4v cells)
Steel poles for PV Top Of Pole mounts

Optional Equipment:
Wind Generator  (1000 Watt Wind Generator with Controller)

$19,997 Cash&Carry Price -
ORDER NOW
prices do not include GST - Provincial Sales Tax Exempt.

Note that exact system components may differ depending on availability & price.

Return to Solareagle Home Page

*Location Dependant
